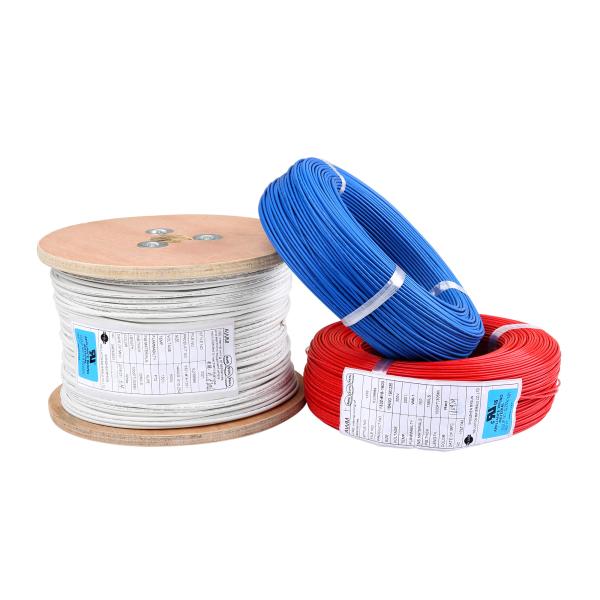

Stranded Conductor 18AWG XLPE Insulation Wires UL1589 30V

Brand Name : Mysun

Model Number : UL1589

Certification : ROHS/CCC/VDE/CCC/ISO9001:2008

Place of Origin : Guangdong，China

MOQ : 3050meters

Price : 0.06~0.48USD per M

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500000 Meters per Day

Delivery Time : 7-15 working day

Packaging Details : Standard packge: cardboard box Accept custom-made.

Conductor Type : Stranded

Color : Black

Usage : Widely used in home appliance ,lighting ,heater,motor & generator,UAU,robot,industrial power etc

Rated Voltage : 30v

Rated Temperature : 80 C

Size : 18AWG

Conductor : Copper

Standard : UL758

Insulation : XLPE

Type : insulated

Max.Cond Resistance : 8.78 Ω/KM

Construction : 34/0.18

Contact Now

30V Low Rated Voltage 18AWG XLPE Insulation Wires in Black Color



 UL 1589  Specifications:

Nominal voltage:30V

Temperature range:80℃

Standard: UL1589

Insulation: xlpe

Conductor:  copper





Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.







Product Parameter



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.


Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
32 7/0.08 0.24 0.2 0.64 563 1220/4000
30 7/0.10 0.3 0.25 0.8 381 610/2000
28 7/0.127 0.38 0.25 0.88 239 610/2000
26 7/0.16 0.48 0.25 0.98 150 610/2000
24 11/0.16 0.61 0.25 1.11 94.2 610/2000
22 17/0.16 0.77 0.25 1.27 59.4 610/2000
20 21/0.18 0.92 0.26 1.44 36.7 610/2000
18 34/0.18 1.19 0.30 1.79 23.2 305/1000
16 26/0.254 1.49 0.30 2.09 14.6 305/1000
14 41/0.254 1.87 0.35 2.57 8.78 305/1000



Our Product



Stranded Conductor 18AWG XLPE Insulation Wires UL1589 30V



Product Description



Stranded Conductor 18AWG XLPE Insulation Wires UL1589 30V

Stranded Conductor 18AWG XLPE Insulation Wires UL1589 30V



Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days



Stranded Conductor 18AWG XLPE Insulation Wires UL1589 30V
