305M/ Roll 125c XLPE Hook Up Wire Tinned Copper 22AWG UL758

Brand Name : Mysun

Model Number : UL3271

Certification : ROHS/CCC/VDE/CCC/ISO9001:2008

Place of Origin : Guangdong，China

MOQ : 3050meters

Price : 0.06~0.287USD per M

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500000 Meters per Day

Delivery Time : 7-15 working day

Packaging Details : Standard packge: cardboard box Accept custom-made.

Conductor Type : Stranded

Color : Yellow Green

Usage : Widely used in home appliance ,lighting ,heater,motor & generator,UAU,robot,industrial power etc

Rated Voltage : 750V

Rated Temperature : 125C

Size : 22AWG

Conductor : Tinned Copper

Standard : UL758

Insulation : XLPE

Type : insulated

Max.Cond Resistance : 59.4Ω/KM

Construction : 17/0.16

Meter : 305M/ Roll

Contact Now

Power wries and cables wholesale in dubai XLPE UL standard wires



 UL3271 Specifications:

Nominal voltage:600-750V

Temperature range:125℃

Standard: UL3271

Insulation: xlpe

Conductor: Tinner copper

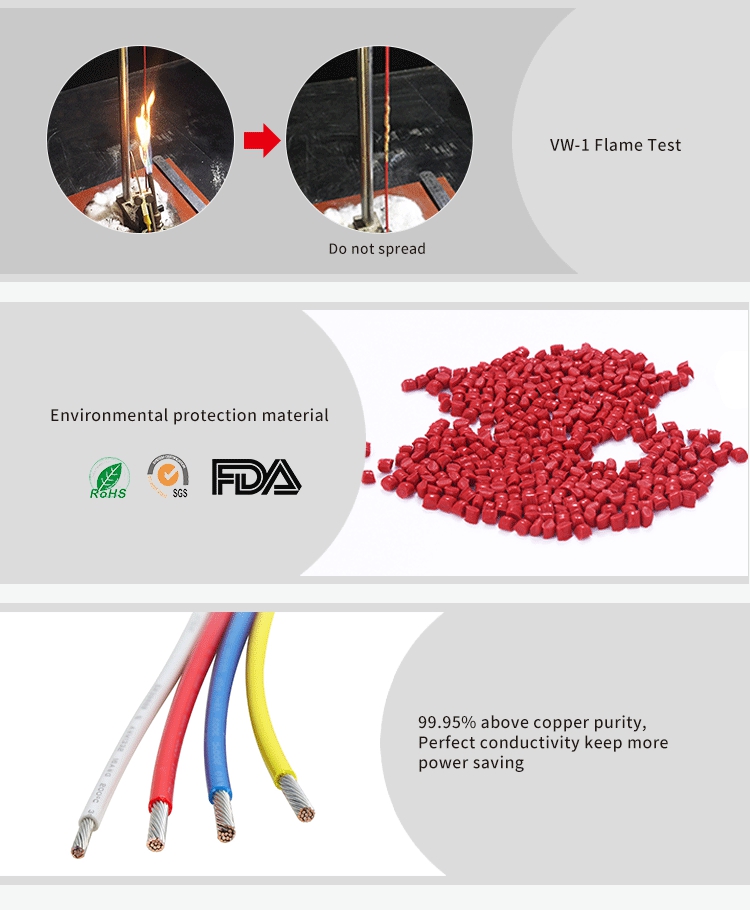

Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.







Product Parameter



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.


Conductor
Insulation
Max.Cond Resistance
Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
(Ω/KM)
(M)(Ft)
30
7/0.10
0.30








0.78
1.86
381
305/1000
28
7/0.127
0.38
1.94
239
26
7/0.16
0.48
2.04
150
24
11/0.16
0.60
2.16
94.2
22
17/0.16
0.76
2.32
59.4
20
21/0.18
0.94
2.49
36.7
18
16/0.254
1.18
2.73
23.2
16
26/0.254
1.50
3.06
14.6
14
41/0.254
1.89
3.45
8.96
12
65/0.254
2.37
3.93
5.64
10
105/0.254
3.02
4.58
3.55
9
133/0.254
3.36
4.92
2.82
8
133/0.28
3.75
1.15
6.05
2.23
100/328
6
84/0.45
4.79
7.09
1.41
4
133/0.45
6.02
8.32
0.89
2
212/0.45
7.60
1.15
10.66
0.56

305M/ Roll 125c XLPE Hook Up Wire Tinned Copper 22AWG UL758

305M/ Roll 125c XLPE Hook Up Wire Tinned Copper 22AWG UL758




Our Product



305M/ Roll 125c XLPE Hook Up Wire Tinned Copper 22AWG UL758



Product Description



305M/ Roll 125c XLPE Hook Up Wire Tinned Copper 22AWG UL758

Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
